frogBoxRelay5-2

Description

Weatherproof box with 5 connections for switching and controlling lighting, shading, gates/doors and other consumers.

In addition, the frogBoxRelay5-2 can be used in combination with the frogBoxHeat for heating control.

Function & Performance
Inputs	2 (AC 110–240 V ~)
Outputs	5 potential-free (in 3 galvanically isolated circuits)
Outputs dimmable	No
Certifications	Bluetooth®
Integrated logic module	Yes
Integrated configuration backup	Yes
Comfort and timer functions	Yes
Power measurement	No
Motor control	Yes
Temperature sensor	Yes
Max. Power	max. 6 A / 30 V DC max. 6 A / 110-240 V AC
Power supply
Mains voltage	AC 110–240 V~
Stand-by consumption	< 200 mW (without lighting)
Network
WLAN	No
Bluetooth®	Bluetooth® 4.2 Low Energy
Frequency range	2400-2483,5 MHz max. 5,0 dBm
Typical radio open field range	30 Meter
Operation & Storage
Ambient temperature	-25°C bis +60°C
Storage temperature	–25°C bis +70°C
Air humidity (during operation)	(Non-condensing)

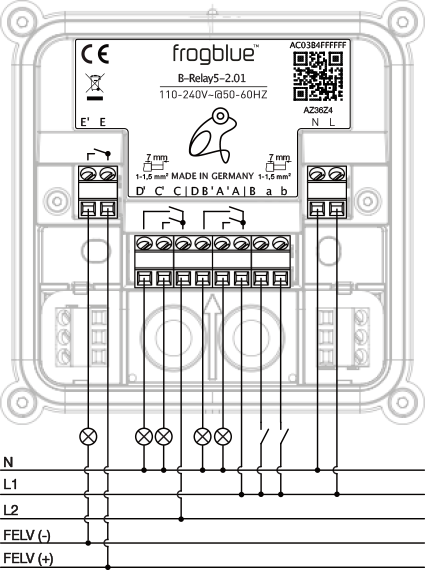

Connection
Type of contact	μ, closing contact
Connection variants	roller blind/roller shutter motor, lamps, buttons, switches etc.
Connection type	Screw terminal (single wire)
Core cross-section	1 - 1,5 mm2 (rigid, flexible with ferrule)
Stripping length	7 mm
Quantity cable feed	2 (max. NYM-J 5 x 1,5mm2 )
Packaging
Packaging size	1 unit
EAN 1 unit	4260578530804
Packaging dimensions (L x B x H) 1 Stück	130 x 140 x 75 mm
Weight including packaging 1 unit	439 g
Mounting Type
Mounting type	Surface-mounting or mounting on device box according to DIN 49073
Material data
Weight	316 g
Technical data
Degree of protection	Conforms to IP56
Mains frequency	50 / 60 Hz
