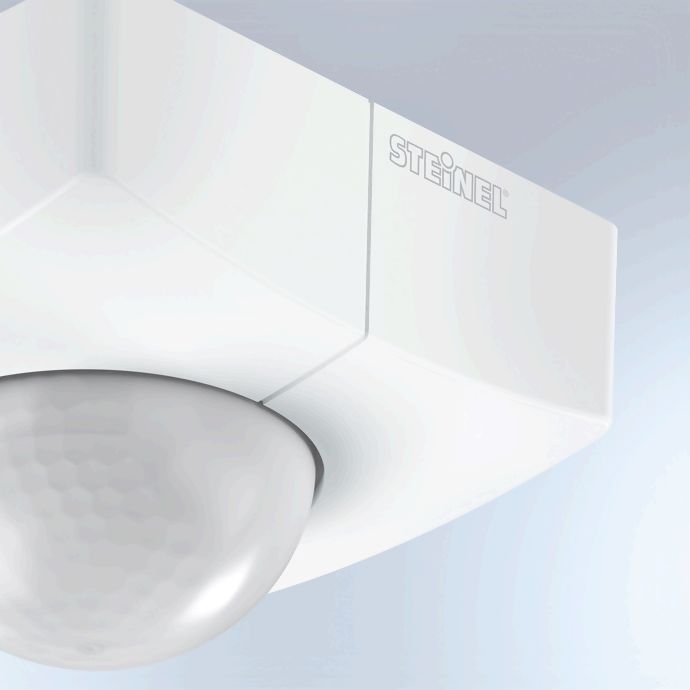

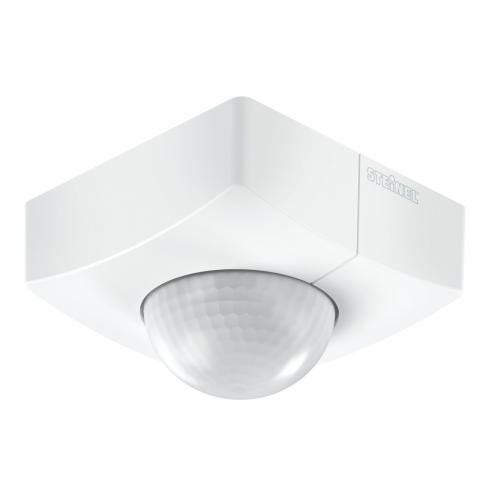

Motion detector - IS 3360 MX Highbay PF - Professional Line - surface - square

A head for heights. Powerful reach. Reliable.

The ceilings are generally quite high in industrial halls and business premises. Good to know then that even high ceilings do not present a problem to the IS 3360 MX Highbay. The long-reach motion detector has an extra-large detection zone and remains absolutely alert even when it is installed at a height of up to 14 metres. The IS 3360 MX Highbay is highly reliable.

Specifications for Motion detector - IS 3360 MX Highbay PF - Professional Line - surface - square

Function & Performance
Version	Bewegungsmelder
Sensor technology	Passiv Infrarot
Electronic scalability	nein
Mechanical scalability	nein
Detection angle	360 °
Opening angle	180°
Crawl protection	ja
Segmental blanking	ja

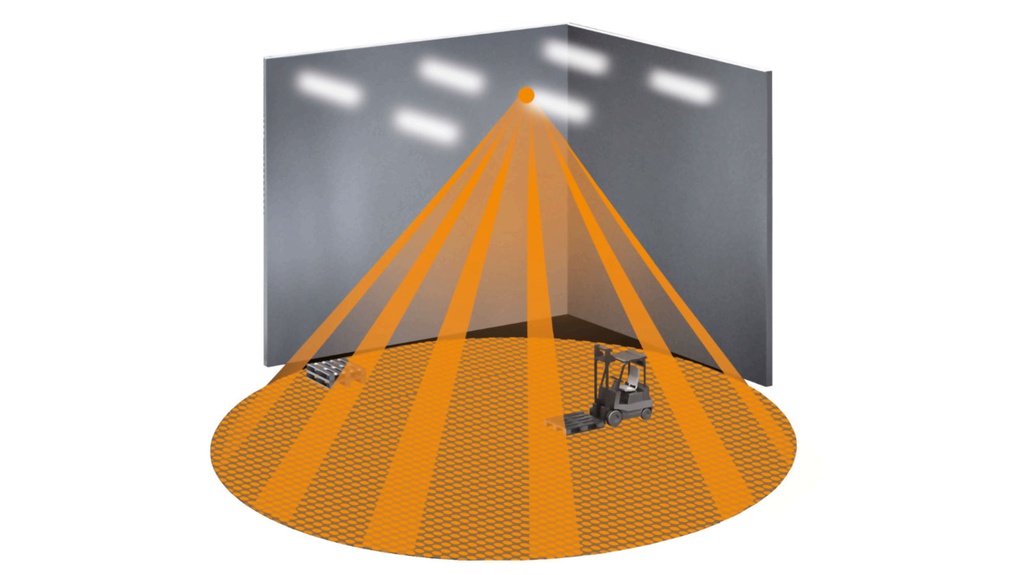

Radial range	Ø 14 m (154 m²)
Tangential range	Ø 36 m (1018 m²)
Twilight adjustment Teach	ja
Twilight settings	2 – 1000 lx
Time setting	5 s – 15 Min.
Constant lighting regulation	nein
Ambient light function	nein
Adjustable main lighting	nein
Functions	Normal- / Testbetrieb, Manuell ON / ON-OFF
with remote control	nein
Variation	PF - Aufputz eckig
Interface port	PF (Schalten potentialfreier Kontakt)
Size and Weight
Dimensions (L x B x H)	65 x 95 x 95 mm
Power supply

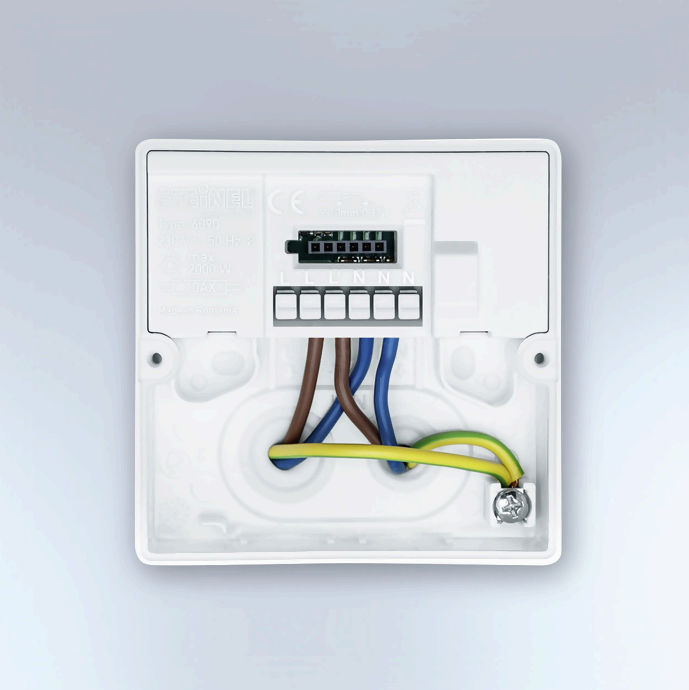

Power connection	220 - 240 V / 50 - 60 Hz
Operation & Storage
Ambient temperature	-20 – 50 °C
Application, location	Innenbereich

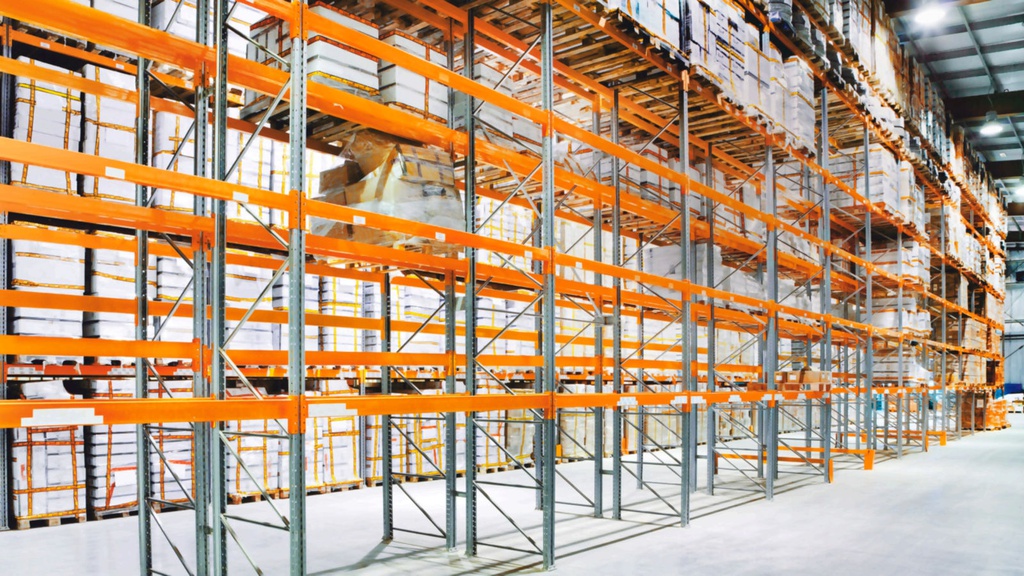

Application, room	Hochregallager, Sporthalle, Innenbereich

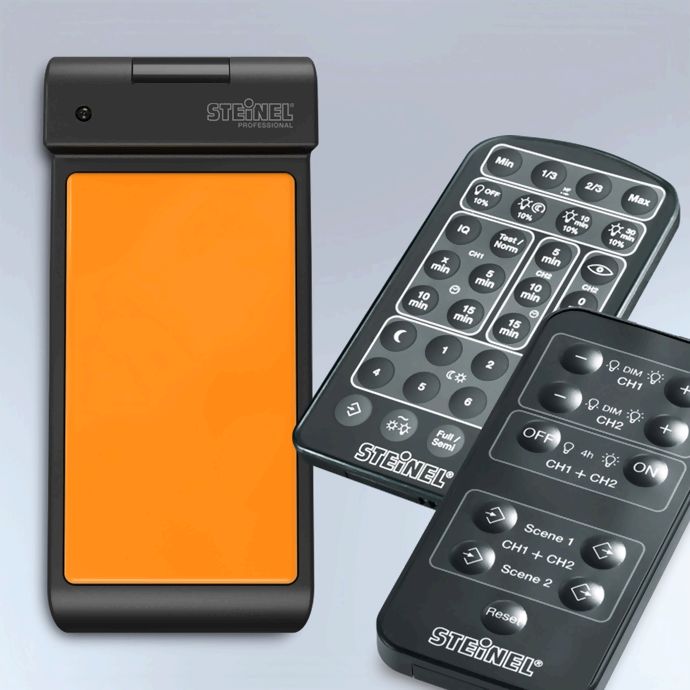

Settings via	Fernbedienung,Potis,Smart Remote
Connection
Casing colour	white
Connectivity	ja
Casing
Material	Kunststoff
Color, RAL	9003
Mounting Type
Mounting type	Aufputz
Mounting height	4,00 – 14,00 m
Optimum mounting height	12 m
Garantie
Manufacturer guarantee	5 Jahre
Technical data
Degree of protection	IP54
Operating Power	2000 W
