Motion detector IS 345 PF - Professional Line - concealed - round

Pioneering sensor technology. Targeted detection.

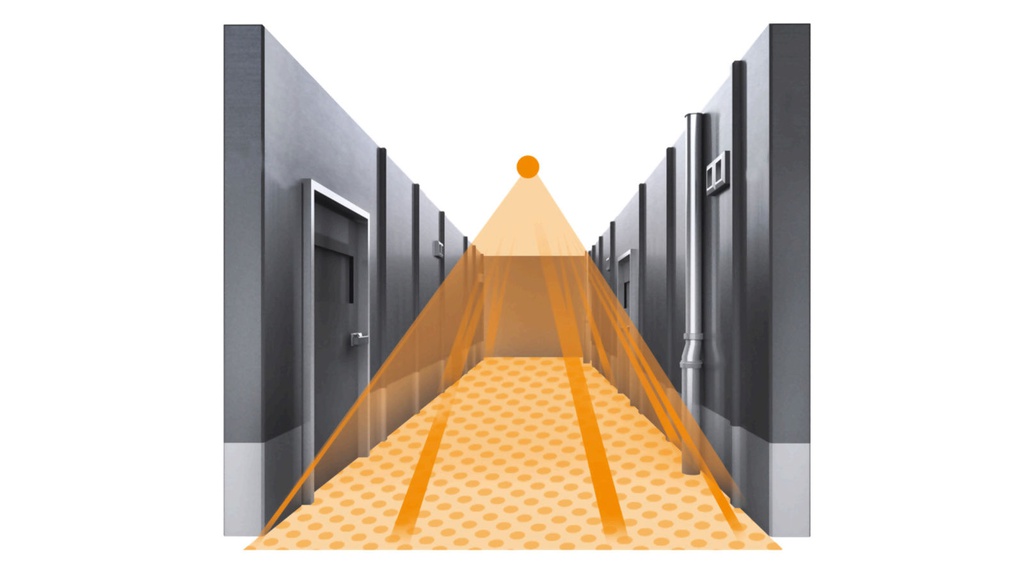

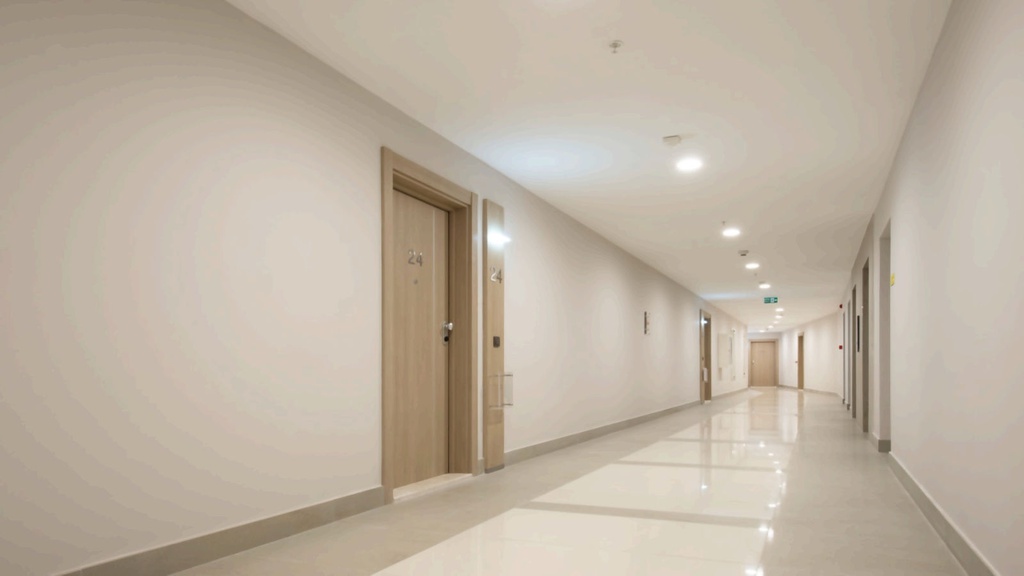

Aisles and long corridors place special demands on sensor performance. The detection area of the sensor must be narrow, but long. Only in this way can the fewest possible sensors cover sections of the greatest possible length. Tried and proven over and over again, the IS 345 is the specialist for indoor applications of this type. It is specially designed for detection in corridors and has an angle of aperture of 45°. This means that it can watch over an area of up to 23 x 6 metres tangentially.

Specifications for Motion detector IS 345 PF - Professional Line - concealed - round

Function & Performance
Version	Bewegungsmelder
Sensor technology	Passiv Infrarot
Electronic scalability	nein
Mechanical scalability	nein
Detection angle	360 °
Opening angle	45°
Crawl protection	ja
Segmental blanking	ja
Radial range	12 x 6 m (72 m²)
Tangential range	23 x 6 m (138 m²)
Twilight adjustment Teach	ja
Twilight settings	2 – 1000 lx
Time setting	5 s – 15 Min.
Constant lighting regulation	nein
Ambient light function	nein
Adjustable main lighting	nein
Functions	Normal- / Testbetrieb, Manuell ON / ON-OFF
with remote control	nein
Variation	PF - Unterputz rund
Interface port	PF (Schalten potentialfreier Kontakt)
Power supply
Power connection	220 - 240 V / 50 - 60 Hz
Operation & Storage
Ambient temperature	-25°C bis +50°C
Application, location	Innenbereich
Application, room	Flur / Gang, Parkhaus / Tiefgarage, Innenbereich
Settings via	Fernbedienung,Potis,Smart Remote
Connection
Casing colour	white
Connectivity	ja
Casing
Material	Kunststoff
Color, RAL	9003
Mounting Type
Mounting type	Unterputz
Mounting height	2,50 – 5,00 m
Optimum mounting height	2,80 m
Garantie
Manufacturer guarantee	5 Jahre
Technical data
Degree of protection	IP20
Operating Power	2000 W
Uncategorized
Dimensions (Ø x H)	124 x 78 mm
