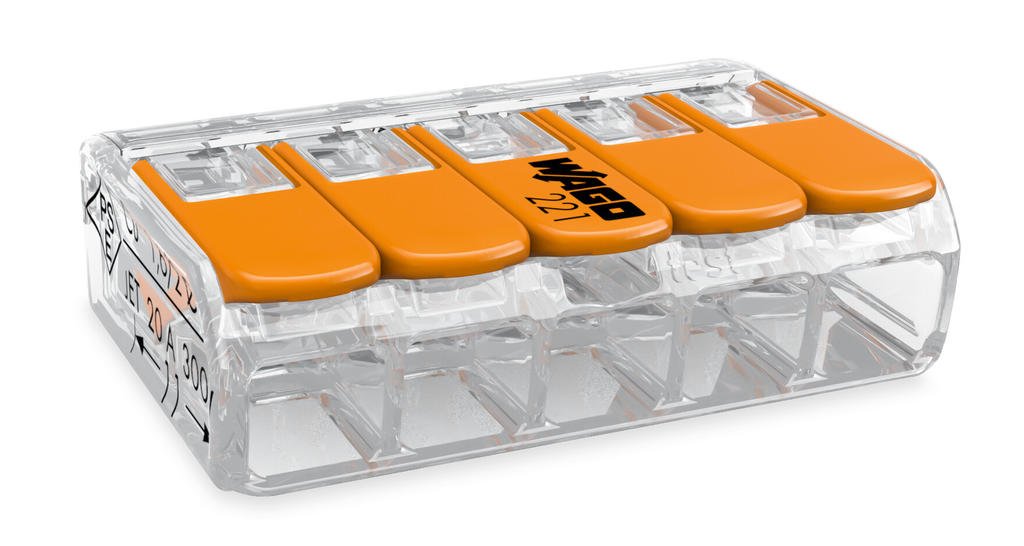

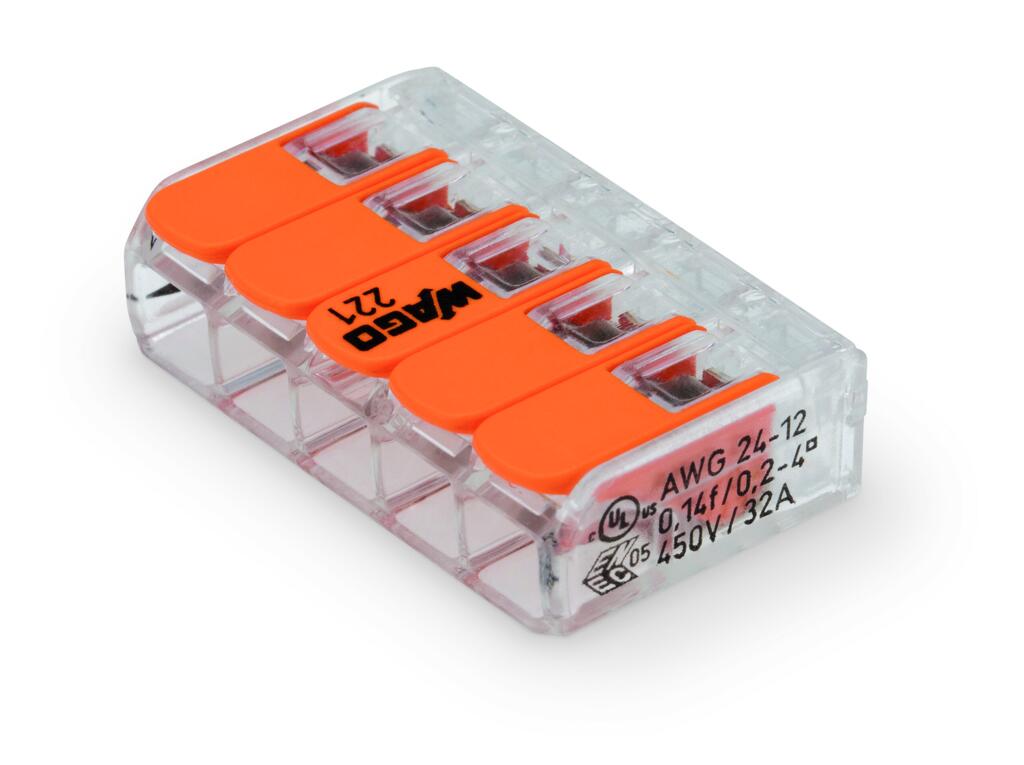

COMPACT Splicing Connector - 5-conductor

Your Benefits:

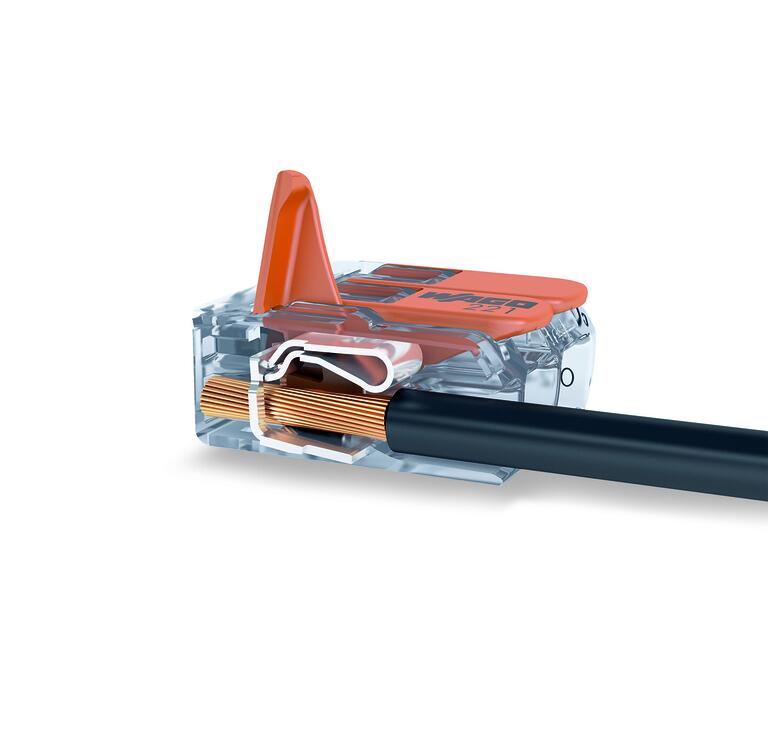

Ease of use – pull the lever up, insert a conductor and push the lever back down
Available as 2-, 3- and 5-wire connectors
Easily terminate conductors from 0.14 to 4 mm²
Connect solid, stranded and fine-stranded conductors
Time savings for installers and device manufacturers
Quickly install devices with higher levels of power consumption
Safely install long cable runs with larger conductor cross sections
Mounting carrier for installation conforms to standards
Custom carriers are possible

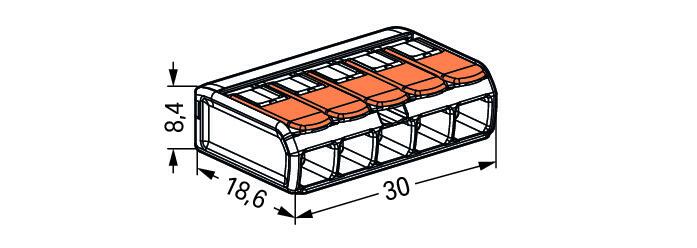

Size and Weight
Weight	4 g
Depth	18,8 mm / 0.732 inch
Height	8,6 mm / 0.327 inch
Connection
Casing colour	transparent
Packaging
Packaging size	100 units
Electrical data
Approvals per	UL 486C
Rated voltage UL (Use Group C)	600 V
Rated current UL (Use Group C)	20 A
Ratings per	EN 60664
Nominal voltage (II/2)	450 V
Rated surge voltage (II/2)	4 kV
Rated current	32 A
Legend (ratings)	(II / 2) Overvoltage category II / Pollution degree 2
Notes
Safety information 1	in grounded power lines
Connection data
Total number of connection points	5
Total number of potentials	1
Connection technology	CAGE CLAMP®
Actuation type	Lever
Connectable conductor materials	Copper
Nominal cross-section	4 mm²
Solid conductor	0.2 … 4 mm² / 24 … 12 AWG
Stranded conductor	0,2 … 4 mm² / 24 … 12 AWG
Fine-stranded conductor	0.14 … 4 mm² / 24 … 12 AWG
Strip length	11 mm / 0.43 inch
Wiring direction	Side-entry wiring
Physical data
Width	30 mm / 1.181 inch
Material data
Flammability class per UL94	V2
Fire load	0,075 MJ
Color of actuator	orange
Environmental requirements
Surrounding air temperature (operation)	85 °C
Continuous operating temperature	105 °C
Temperature marking per EN 60998	T85
