Multifunctional 1-channel switching actuator for lights or other appliances with 3 input to query buttons and switches (110-240V~). With comfort and timer functions, power measurement and short-circuit detection. (1x 400 W @ 230 V~).

1

128.00 € 128.00 € 128.0 EUR

128.00 €

(0% Discount)
Days
:
Hours
:
Mins
:
Secs
  • Inputs
  • Outputs
  • Outputs can be dimmed
  • Minimum Load LED
  • Maximum Power per output
  • Suitable loads
  • Output modes
  • Protection category
  • Integrated logic module
  • Integrated configuration backup
  • Comfort and timer functions
  • Power measurement
  • Short circuit detection and notification

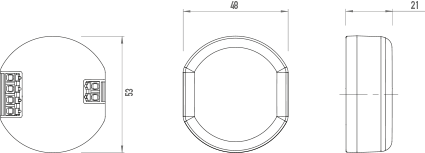

  • Dimensions (L x B x H)
  • Weight
  • Mains voltage
  • Mains frequency
  • Stand-by consumption
  • WLAN
  • Bluetooth
  • Frequency range
  • Typical radio open field range
  • Ambient temperature
  • Storage/transport temperature
  • Air humidity (during operation)
  • Type of contact
  • Connection variants
  • Connection type
  • Core cross-section
  • Stripping length
  • Packaging size
  • EAN 1 unit
  • Packaging dimensions (L x B x H) 1 Stück
  • Weight including packaging 1 unit
  • Weight including packaging, 10 pieces
  • Mounting type

This combination does not exist.

Add to Cart
SKU:
900.000088

Category:

  • Actors
  • Share:


    • Delivery time: 1 - 2 Workdays (within Germany)

    Description

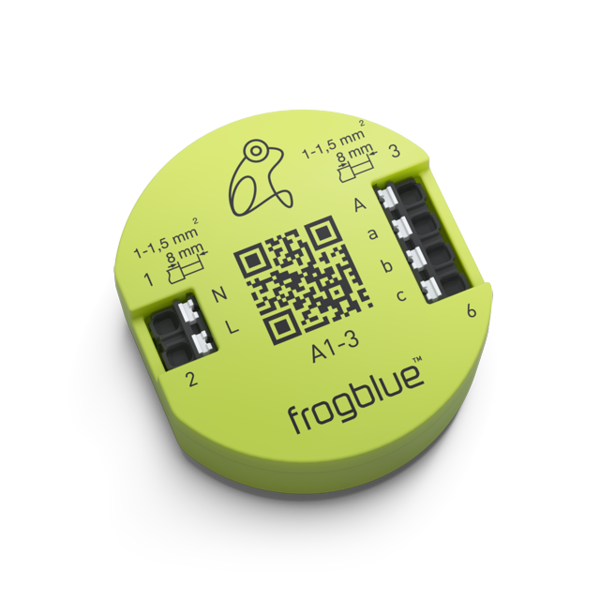

    The small green control modules, called frogs, are the heart of every frogblue system and form the basis of the Bluetooth®-based smart building solution from frogblue. Our frogs can switch, dim, measure, open doors or react to buttons, switches and window contacts.


    Connected to the mains or battery-powered, they are linked together with "virtual cables" via the frogblue Bluetooth® mesh network. They forward messages and thus extend the range. Data transfer between the frogs is always encrypted (128 bit), and this in addition to Bluetooth®. frogs are smart, packed with innovative functions, are very easy to configure and do not require a central unit or control cabinet. With a power consumption of just 0.2 watts, they are also extraordinarily energy-conscious.

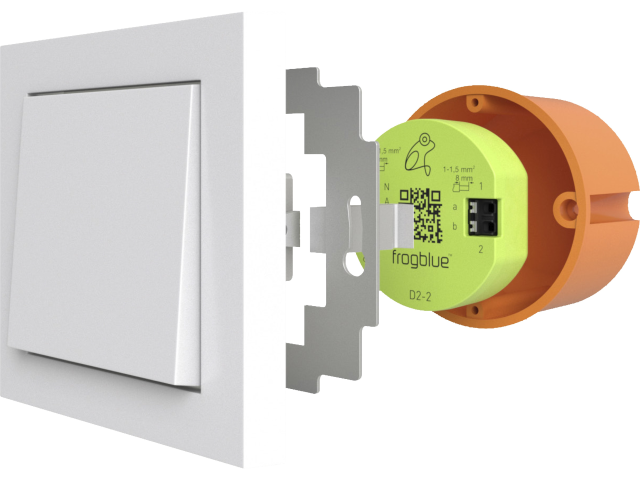

    Installed in a deep flush-mounted back box (recommended socket depth: 63 mm) behind any conventional switch/button, junction box, weatherproof outdoor socket or lamp outlet, this multifunctional 1-channel actuator can be used to control the lights or other appliances.

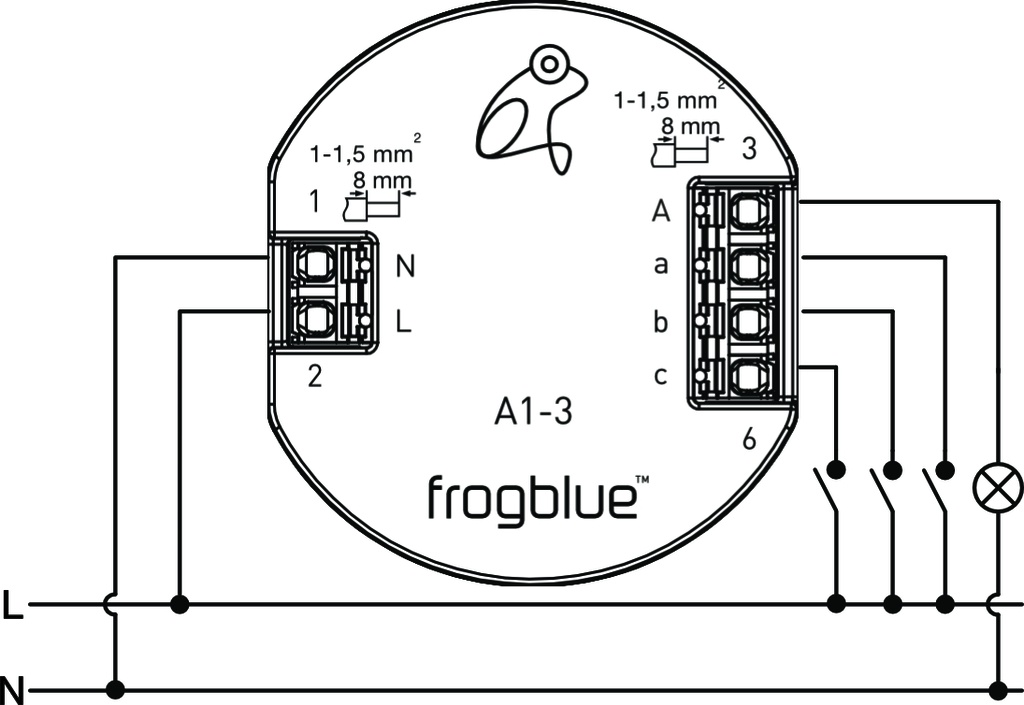

    For example, this and other frogs can be used to quickly and easily implement an alternating or cross-switching system. No cable laying, no central unit and no control components in the sub-distribution board are necessary. The living room, dining room and kitchen lights can be controlled with just three frogblue units (frogAct1-3) installed behind the light switches/buttons, because three light switches can be connected to each of the 400 W actuators.


    Additional centralised, building-wide functions or lighting scenarios can also be assigned to the light switches by using different clicking patterns (e.g. double click). A double click could be configured for all or selected light switches to switch on the lights in all three rooms at once.


    The frogs can be controlled with the frogblue HomeApp via smartphone or tablet (iOS and Android), frogDisplay, frogKey or simply via the conventional switch/button connected to a frog. We always recommend buttons, as the full range of functions can be used with individual and different touch patterns, such as double or triple clicks, etc.


    Product characteristics

    • Short-circuit protection

    • Temperature cut-out (>75 °C)

    • Switch status feedback

    • Configurable switch on and switch off times

    • Switch on and switch off delay

    • Mains supply via power cable, no additional cabling required between frogblue modules.

    Intended use

    For assembly in device sockets according to DIN 49073. Socket depth minimum 53 mm when installed behind switch insert, individual installation is required at lower depth. A socket depth of 63 mm is recommended.


    System information

    This device is a product of the frogblue system. Detailed technical expertise obtained through frogblue training sessions is a prerequisite. The functionality of the device depends on the software. Detailed information regarding software versions and the respective range of functions can be found on the frogblue website. Technical descriptions, additional detailed instructions as well as notes, information regarding proper disposal can be found in the manual, which is available on the frogblue website. Commissioning and configuration will be executed using the frogblue app.


    Safety information

    Electrical devices may only be installed and assembled by qualified, skilled electricians. Failure to observe the instructions can cause damage to the device and result in fire and other hazards. Danger caused by electric shock. Device is not suitable for disconnection from power voltage. Even when the device is turned off, the load is not electrically isolated from the mains. Before starting work on the device or replacing light sources, always disconnect the power supply and switch off the circuit breakers. Country-specific regulations must always be observed.
