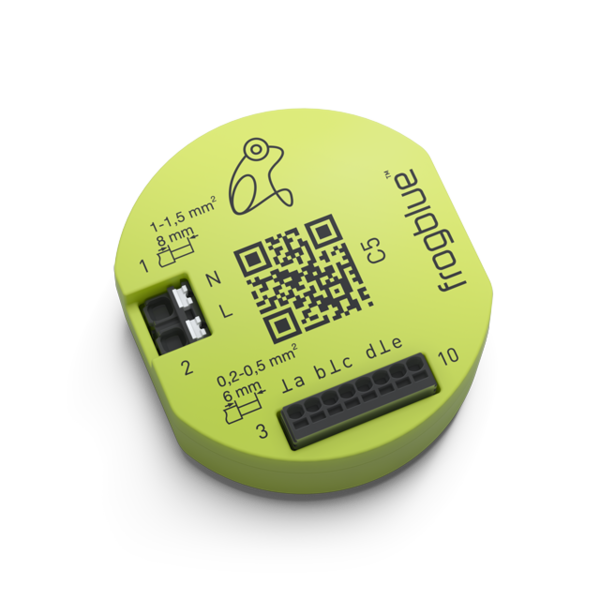

frogContact5

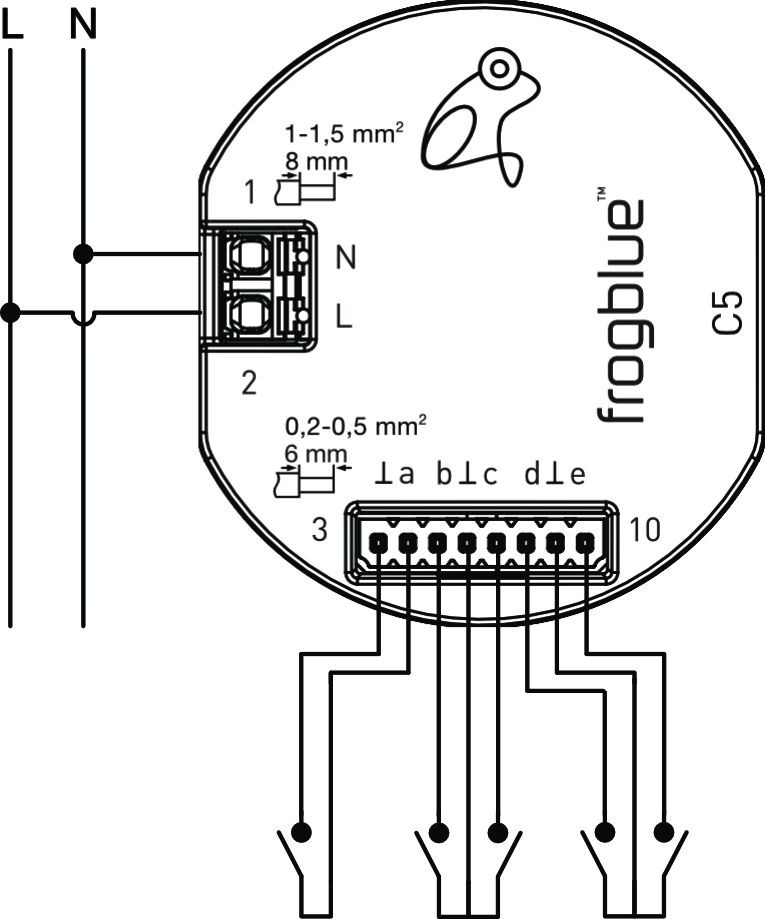

Multifunctional 5-channel contact module to query low-voltage contacts. 5 inputs in 3 galvanic circuits. Featuring integrated logic module with comfort and timer functions.
1Category:
Description
The small green control modules, called frogs, are the heart of every frogblue system and form the basis of frogblue's Bluetooth®-based smart building solution. Our frogs switch, dim, measure, open doors or react to buttons, switches and window contacts.
Connected to the mains or battery-powered, they use the frogblue Bluetooth® mesh network to create "virtual cables" between each other, forward messages and thus extend the range. Data transmission between the frogs is exclusively encrypted (128-bit) in addition to Bluetooth®. Frogs are smart, packed with innovative functions, very easy to configure and do not require a central unit or control cabinet. With a power consumption of just 0.2 watts, they are also extremely energy-efficient.
Installed in the deep flush-mounted box (recommended box depth: 63mm) behind every conventional switch/button, the distribution box, a weatherproof box outdoors, roller shutter box or the lamp outlet, the frogContact5 is a multifunctional 5-channel Input module for querying low-voltage contacts, such as reed contacts or any other potential-free contacts. In the event of a fire alarm, the frogContact5 connected to a smoke detector can communicate with all other frogs in the system via Bluetooth® and automatically control the shading and lighting.
The frogs can be controlled with the frogblue HomeApp via the smartphone or tablet (iOS and Android), the frogDisplay, the frogKey or simply via the conventional switch/button connected to a frog. We always recommend buttons, as the full range of functions can be used through individual and different tactile patterns, such as double or triple click, etc.
Product features
Parametrisable inputs
Mains power cable, no additional cabling required between frogblue modules necessary.
Intended use
Installation in a device box according to DIN 49073. Box depth min. 53 mm when installed behind switch insert; If the depth is shallower, individual installation is necessary. A can depth of 63mm is recommended.
System information
This device is a product of the frogblue system. Detailed technical expertise obtained through frogblue training sessions is a prerequisite. The functionality of the device depends on the software. Detailed information regarding software versions and the respective range of functions can be found on the frogblue website. Technical descriptions, additional detailed instructions as well as notes, information regarding proper disposal can be found in the manual, which is available on the frogblue website. Commissioning and configuration will be executed using the frogblue app.
Safety information
lectrical devices may only be installed and assembled by qualified, skilled electricians. Failure to observe the instructions can cause damage to the device and result in fire and other hazards. Danger caused by electric shock. Country-specific regulations must always be observed.
