frogControl1-1

Add a new review

Control of the frogblue system by 12 glass touch keys. With integrated proximity sensor, brightness sensor, temperature sensor and time buffer. With one input for connecting floating contacts and one switching output (230 V~).

1

298.00 € 298.00 € 298.0 EUR

(Total : 298.00 € ) 298.0 EUR

298.00 €

(0% Discount)
Days
:
Hours
:
Mins
:
Secs
  • Article description
  • Article number
  • Inputs
  • Outputs
  • Integrated logic module
  • Integrated configuration backup
  • Comfort and timer functions
  • Microphone
  • Loudspeaker
  • Proximity sensor
  • Room temperature sensor
  • Light sensor
  • Switching capacity
  • Sound encoder
  • Door opening button
  • Bell buttons
  • Numeric keypad
  • power supply
  • Mains frequency
  • Stand-by consumption
  • Maximum consumption
  • WLAN
  • Bluetooth®
  • Frequency range
  • Typical radio open field range
  • Ambient temperature
  • Storage temperature
  • Air humidity (during operation)
  • Type of contact
  • Connection variants
  • Connection type
  • Core cross-section
  • Stripping length
  • Max. Cable length of the inputs ø 0,5mm²
  • Packaging size
  • EAN 1 unit
  • Packaging dimensions (L x B x H) 1 Stück
  • Weight including packaging 1 unit
  • Mounting type
  • Degree of protection

This combination does not exist.

Add to Cart
Brand: frogblue
SKU:
900.000088

Category:

  • Cubes

    • Share:


    Description

    Freely configurable 12-button glass touch operating interface for smart lighting, shading and scene control.
    Each button can be assigned individual functions, such as controlling the blind position, lighting and temperature.
    With integrated proximity, brightness and temperature sensor, as well as time buffering in the event of a power failure.


    Intended use

    Electrical appliances may only be installed and assembled by qualified electricians. Failure to observe the instructions may result in damage to the appliance, fire or other hazards! Risk of electric shock. Country-specific regulations must be observed.

    Specifications for frogControl1-1

    Category
    Article description frogControl1-1
    Article number CU-Con-B1-1.01
    Function & Performance
    Inputs 1; for connecting potential-free contacts (switches, buttons, relays)
    Outputs 1
    Integrated logic module Yes
    Integrated configuration backup Yes
    Comfort and timer functions Yes
    Microphone No
    Loudspeaker No
    Proximity sensor Yes, maximum range 1 metre
    Room temperature sensor Yes
    Light sensor Yes
    Switching capacity 1200 W / 1200 VA (220-240 V~) 600 W / 600 VA (110-219 V~)
    Sound encoder Yes
    Door opening button Yes
    Bell buttons Yes
    Numeric keypad Kapazitive, durchleuchtende Tasten
    Power supply
    power supply AC 110–240 V~
    Mains frequency 50 / 60 Hz
    Stand-by consumption 1 Watt
    Maximum consumption 1200 Watt
    Network
    WLAN No
    Bluetooth® Bluetooth® 4.2 Low Energy
    Frequency range 2400-2483,5 MHz max. 2,5 dBm
    Typical radio open field range 30 Meter
    Operation & Storage
    Ambient temperature –25° to +55°C
    Storage temperature –25°C bis +70°C
    Air humidity (during operation) (Non-condensing)
    Connection
    Type of contact μ, closing contact

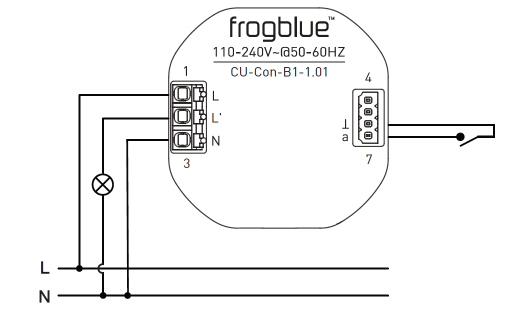

    Connection variants potential-free switches/buttons, lamps, inductive load, electronic transformers
    Connection type Spring-type terminal (single wire)
    Core cross-section 1 - 1,5 mm2 (rigid, flexible without ferrule) / 0,2 - 0,5 mm2 (rigid)
    Stripping length 8 mm (1–1,5 mm²) / 6 mm (0,2–0,5 mm²)
    Max. Cable length of the inputs ø 0,5mm² 100 m
    Packaging
    Packaging size 1 unit
    EAN 1 unit 4260578531184
    Packaging dimensions (L x B x H) 1 Stück 140 × 130 × 60 mm
    Weight including packaging 1 unit 200g
    Mounting Type

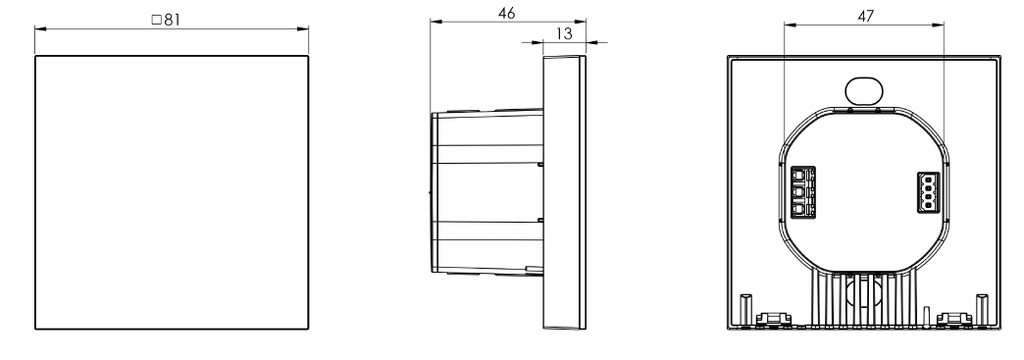

    Mounting type Surface mounted (in device socket according to DIN 49073)
    Technical data
    Degree of protection IP54

    Description

    Freely configurable 12-button glass touch operating interface for smart lighting, shading and scene control.
    Each button can be assigned individual functions, such as controlling the blind position, lighting and temperature.
    With integrated proximity, brightness and temperature sensor, as well as time buffering in the event of a power failure.


    Intended use

    Electrical appliances may only be installed and assembled by qualified electricians. Failure to observe the instructions may result in damage to the appliance, fire or other hazards! Risk of electric shock. Country-specific regulations must be observed.
