Product Image

frogDim2-2

158.00 € 158.00 € 158.0 EUR

(Total : 158.00 € ) 158.0 EUR

158.00 €

(0% Discount)

frogDim2-2

Add a new review

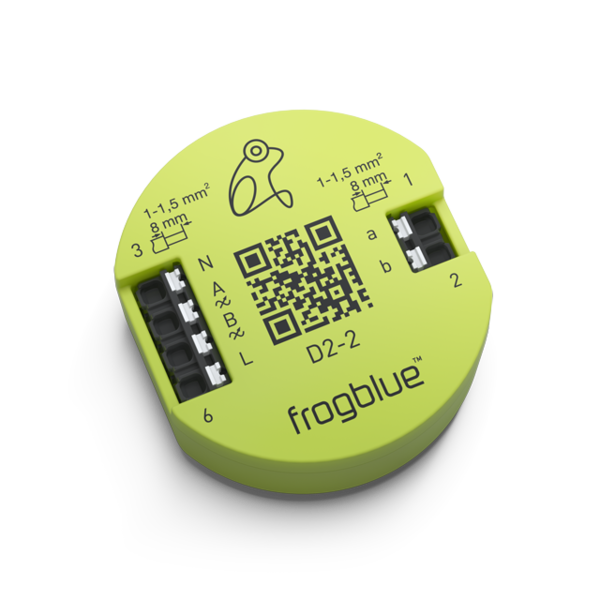

Multifunctional 1-channel dimming actuator with 2 outputs to dim or switch lights on/off and 2 inputs for integration/query of additional switches and sensors (110-240 V~). Switching and dimming functionality for all approved trailing-edge phase control dimmable lighting;Featuring integrated logic module with comfort and timer functions, power measurement and short circuit detection (2x 300 W @ 230 V~).

1

158.00 € 158.00 € 158.0 EUR

(Total : 158.00 € ) 158.0 EUR

158.00 €

(0% Discount)
Days
:
Hours
:
Mins
:
Secs
  • Inputs
  • Outputs
  • Outputs dimmable
  • Minimum Load LED
  • Maximum Power per output
  • Suitable loads
  • Output modes
  • Certifications
  • Integrated logic module
  • Integrated configuration backup
  • Comfort and timer functions
  • Power measurement
  • Short circuit detection and notification
  • Unsuitable loads
  • Dimensions (L x B x H)
  • Mains voltage
  • Stand-by consumption
  • WLAN
  • Bluetooth®
  • Frequency range
  • Typical radio open field range
  • Ambient temperature
  • Storage temperature
  • Air humidity (during operation)
  • Type of contact
  • Connection variants
  • Connection type
  • Core cross-section
  • Stripping length
  • Packaging size
  • EAN 1 unit
  • Packaging dimensions (L x B x H) 1 Stück
  • Weight including packaging 1 unit
  • Weight including packaging, 10 pieces
  • Mounting type
  • Weight
  • Degree of protection
  • Mains frequency

This combination does not exist.

Add to Cart
Brand: frogblue
SKU:
900.000088

Category:

  • Dimmer
  • Share:


    • Delivery time: 1 - 2 Workdays (within Germany)

    Description

    The little green control modules, called frogs, are the heart of every frogblue system and form the basis of frogblue's Bluetooth®-based smart building solution. Our frogs switch, dim, measure, open doors or respond to push buttons, switches and window contacts.


    Connected to the mains or battery-powered, they establish "virtual cables" between each other via the frogblue Bluetooth® mesh network, relaying messages and extending their range. Data transmission between the frogs is exclusively encrypted (128-bit), in addition to Bluetooth®. Frogs are smart, bursting with innovative features, easy to configure and do not require a central processing unit or control cabinet. With a power consumption of only 0.2 watts, they are also exceptionally energy-conscious.

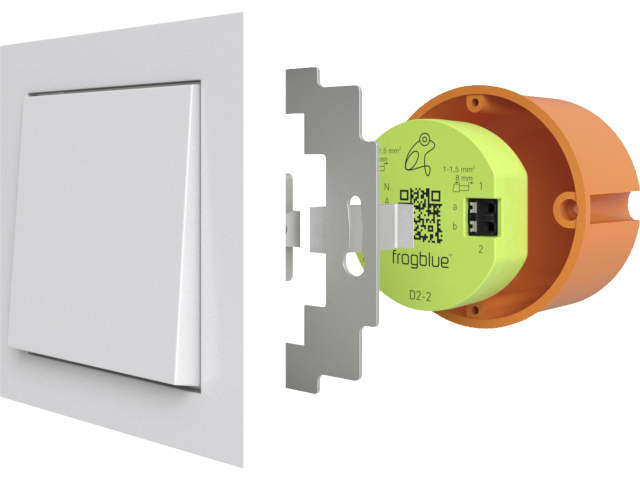

    Installed in the deep flush-mounted box (recommended box depth: 63mm) behind any conventional light switch/button, junction box, weatherproof outdoor box or lamp outlet, this multifunctional 2-channel dimming actuator can be used to switch and dim all light sources approved for phase control.


    The frogblue dimmers are designed for the control of 300 W per lighting circuit (channel) and do not even get warm to the touch. Thus, the frogDim2-2 has two dimmable outputs (300 W each) and two inputs for connecting pushbuttons and switches.


    Whether and how dimming is done is freely configurable. In the night gladly differently than in the day. Additional functions, such as building-wide central on/off or room-wide lighting scenarios, can be defined with the frogblue ProjectApp.


    The frogs can be controlled with the frogblue HomeApp via smartphone or tablet (iOS and Android), the frogDisplay, the frogKey or simply via the conventional switch/button connected to a frog. We always recommend pushbuttons, as this way the full range of functions can be used through individual and different pushbutton patterns, such as double or triple click, etc.


    Product characteristics

    • - Short-circuit protection

    • - Temperature cut-out (>75 °C)

    • - Feedback for switching status and dimming value.

    • - Parametrisable switching on behaviour and dimming behaviour

    • - Switching on and switching off delay with switching off warning

    • - Mains supply via power cable, no additional cabling required between frogblue modules.

    • - Phase cutting or phase section control can be switched via the frogblue app (phase cutting control only permitted for inductive loads)


    Intended use

    Mounting in device box according to DIN 49073. Box depth min. 53 mm for installation behind switch insert; for smaller depths, individual installation is necessary. A box depth of 63 mm is recommended.


    System information

    This device is a product of the frogblue system. Detailed technical expertise obtained through frogblue training sessions is a prerequisite. The functionality of the device depends on the software. Detailed information regarding software versions and the respective range of functions can be found on the frogblue website. Technical descriptions, additional detailed instructions as well as notes, information regarding proper disposal can be found in the manual, which is available on the frogblue website. Commissioning and configuration will be executed using the frogblue app.


    Safety instructions

    Electrical devices may only be installed and assembled by qualified, skilled electricians. Failure to observe the instructions can cause damage to the device and result in fire and other hazards. Danger caused by electric shock. Device is not suitable for disconnection from power voltage. Even when the device is turned off, the load is not electrically isolated from the mains. Before starting work on the device or replacing light sources, always disconnect the power supply and switch off the circuit breakers. Country-specific regulations must always be observed.
