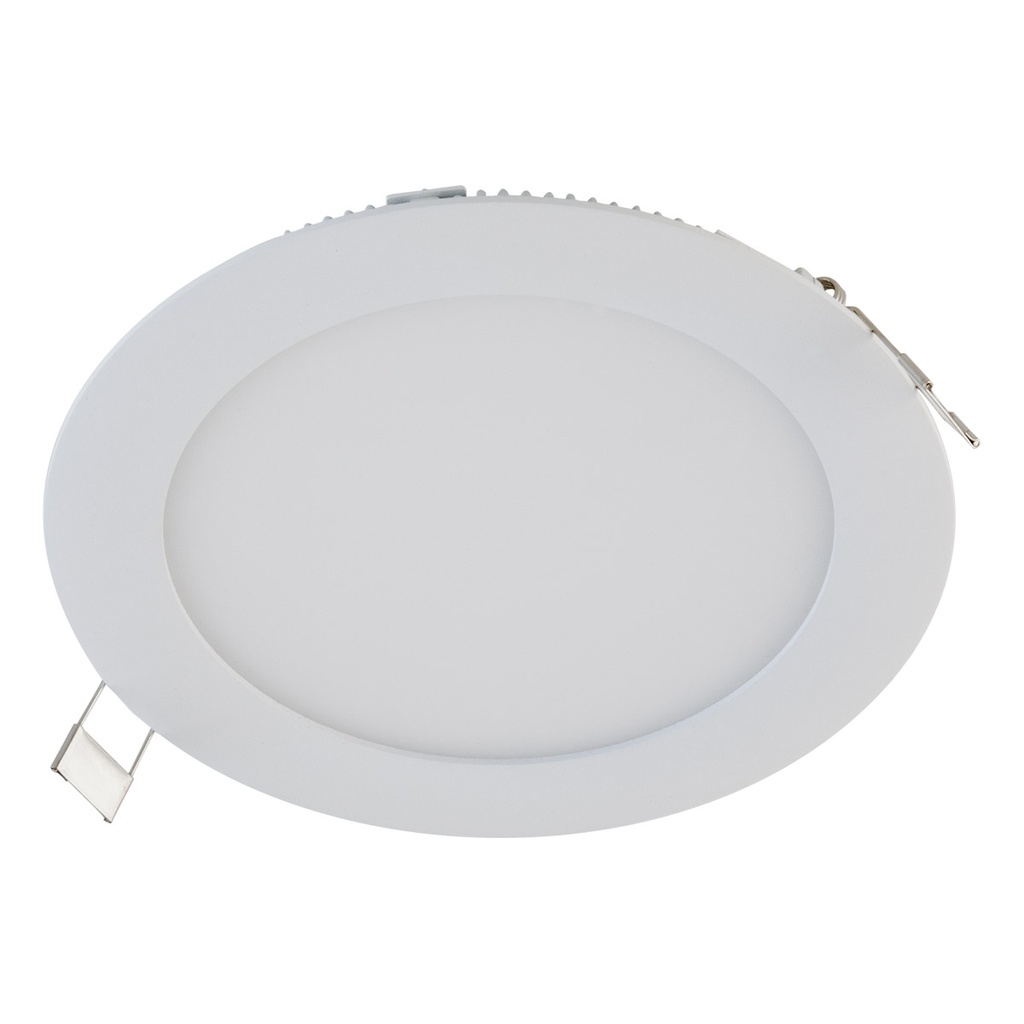

LED recessed panel - RGB+W - 8W - warm white

RGBW-LED recessed panel for various applications, e.g. area-wide, but also effective lighting in hallways, living rooms, offices, and much more. The panel is controlled via an external RGBW controller, allowing several modules to be controlled synchronously. Both the power supply unit and the RGBW controller are available separately. Since the panel is equipped with RGBW LED chips, the light colour white does not have to be generated from the RGB colours. Of the 8W total power, 2W is allotted to 3000K and 6W to RGB. Different operating modes result in the following maximum lumen values: operation in 3000K (2W): 86lm, operation in RGB (6W): 113lm, operation in RGBW (8W): 199lm. Due to the large-area light emission, a very homogeneous illumination of the room is always achieved.

Specifications for LED recessed panel - RGB+W - 8W - warm white

Function & Performance
Dimming potentiometer	nein
Dimming programmable	nein
Dimming phase cut-off	nein
Dimming Phase cut-on cut	nein
Dimming Mains voltage modulation	nein
Dimming manufacturer-specific	nein
Dimming LineSwitch	nein
Dimming GPRS	nein
Dimming DMX	nein
Dimming Sine Wave Reduction	nein
Dimmung DALI	nein
Dimming 0-10 V	nein
Dimming 1-10 V	nein
Dimming RF	nein
Dimming Touch and Dim	nein
Constant luminous flux control	nein
Compatible with Amazon Alexa	nein
Replaceable operating device	nein
Adjustable radiation angle	nein
Adjustable color temperature	nein
Dimming DALI-2	nein
Compatible with Google Assistant	nein
Dimming Zigbee	nein
Compatible with Apple HomeKit	nein
Dimming DSI	nein
Suitable for cable system	no
Dimming depending on the operating device	ja
Without dimming function	no
Dimming with push-button	nein
IFTTT support available	nein
With light sensor	nein
Illuminant	LED nicht austauschbar
Number of poles	5
Suitable for pendant suspension	nein
Color rendering index CRI	80-89
Operating unit	LED-Betriebsgerät spannungsgesteuert
With motion detector	nein
Light distribution	symmetrisch

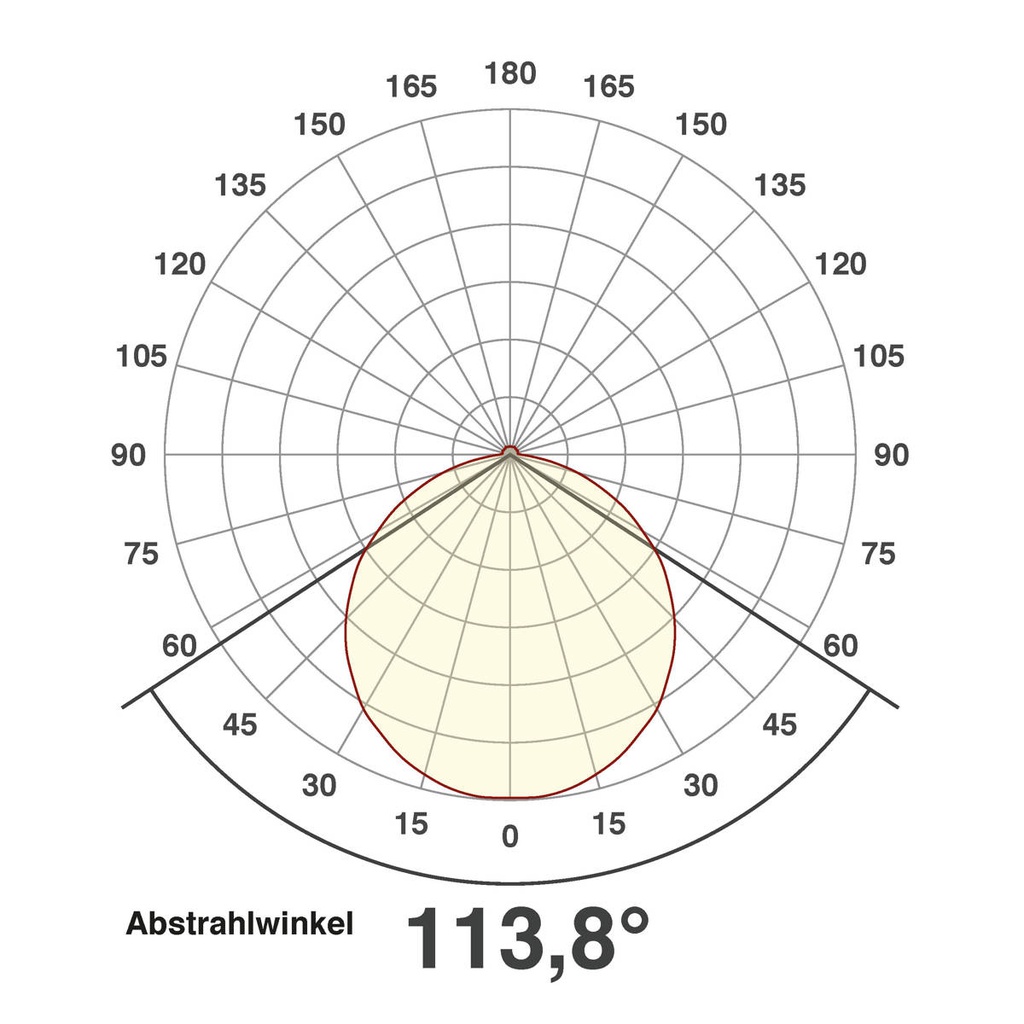

Angle of radiation	extrem breitstrahlend >80°
Color of light	RGBW
Max. System power (W)	8
Color temperature (K)	3.000,00 bis 3.000,00
Integrated emergency power supply	nein
With operating device	nein
Luminaire with limited surface temperature "D symbol"	nein
With illuminant	ja

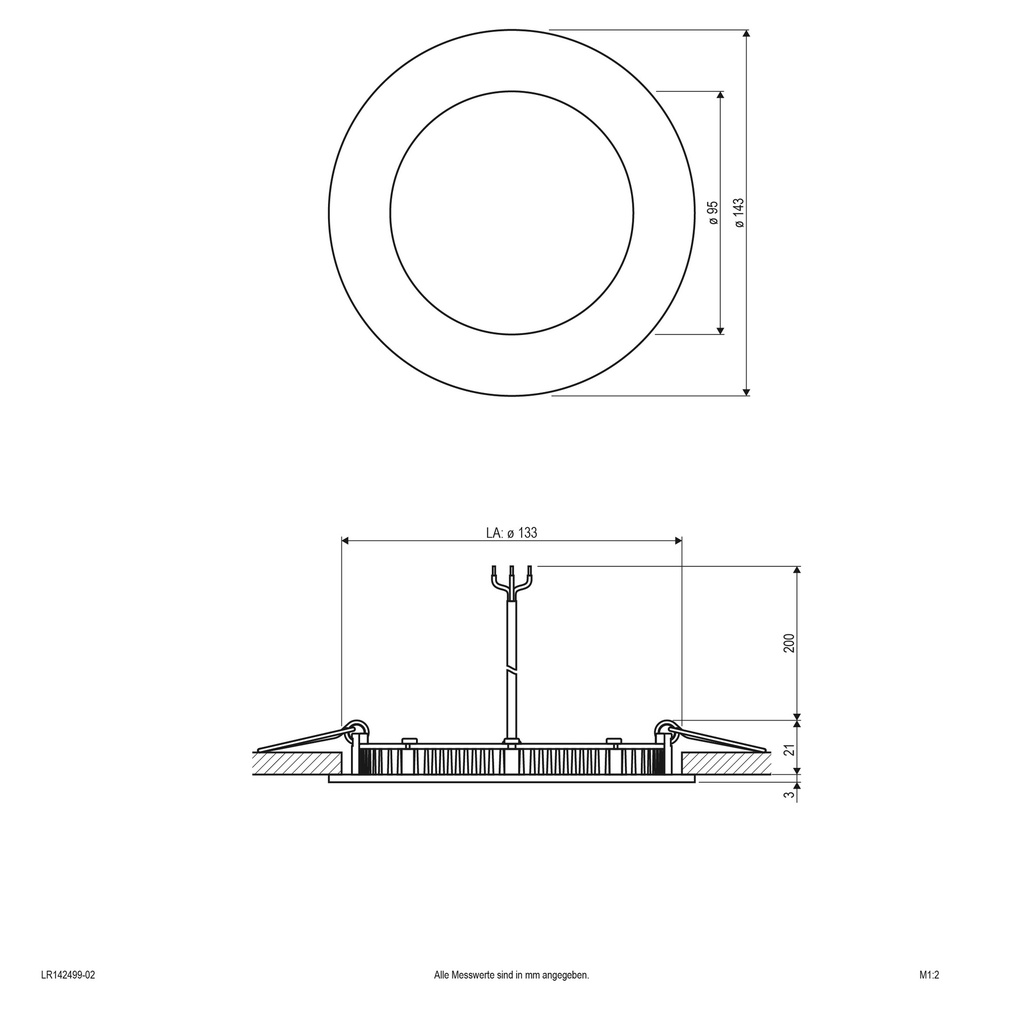

Size and Weight
Outside diameter (mm)	143,00
Height/depth (mm)	50
Power supply
Type of voltage	DC
Nominal voltage (V)	24,00 bis 24,00
Operation & Storage
Ambient temperature	-20°C bis +45°C
Mounting diameter (mm)	133,00
Suitable for VDU workstations according to EN 12464-1	nein
Covering the luminaire with thermal insulation material possible	nein
Installation height/ depth (mm)	24
Connection
Connection type	sonstige
Casing
Enclosure material	Aluminium
Cover material	Kunststoff opal
Case color	weiß
Brushed surface	nein
Mounting Type
Suitable for ceiling mounting	ja
Suitable for clamp mounting	nein
Suitable for wall mounting	ja
Suitable for track mounting	nein
Suitable for platform/floor mounting	nein
Suitable for traverse mounting	nein
Suitable for surface mounting	nein
Suitable for flush mounting	ja
Technical data
Degree of protection	IP20
Protection class	III
Uncategorized
Rated luminous flux according to IEC 62722-2-1 (lm)	86,00
Impact resistance	IK06
