  2. LED recessed panel - Tunable White (2700-6500K) - 6W
Product Image

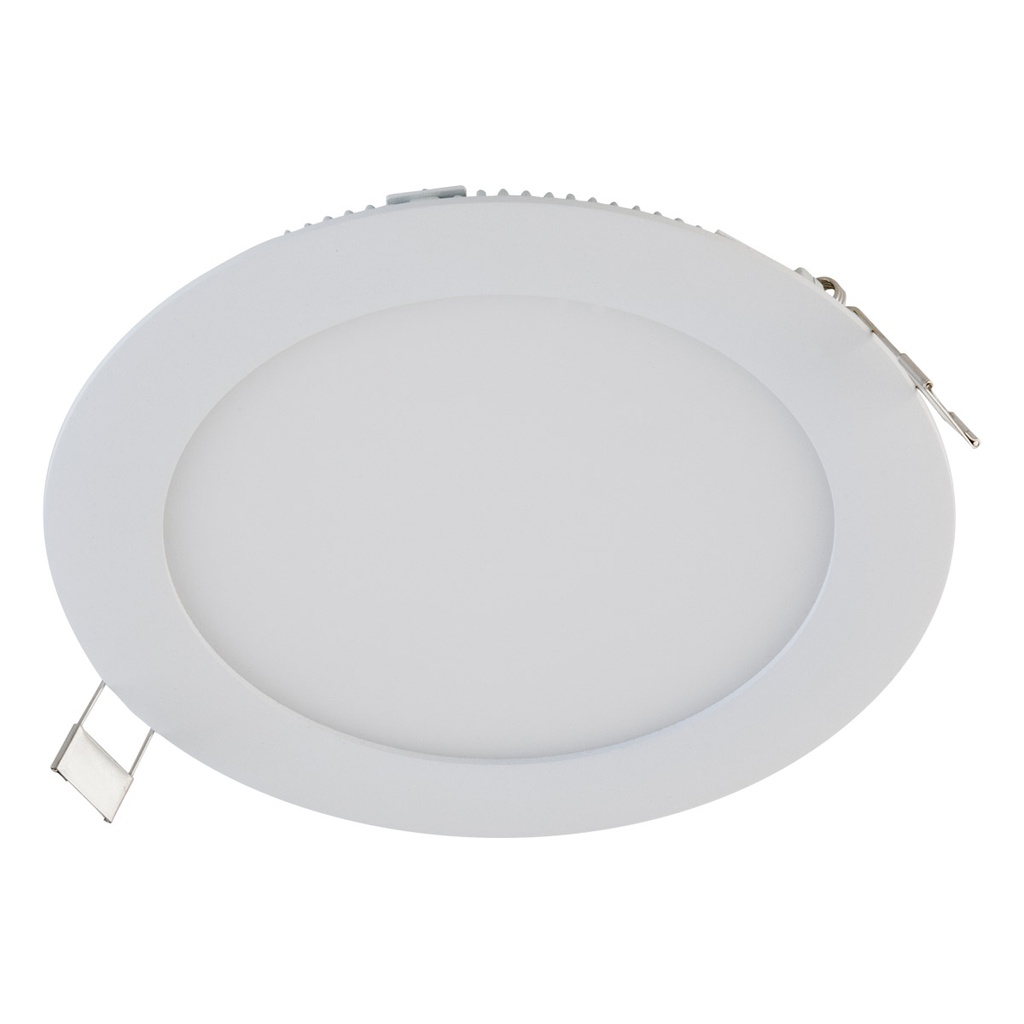

LED recessed panel - Tunable White (2700-6500K) - 6W

88.00 € 88.00 € 88.0 EUR

(Total : 88.00 € ) 88.0 EUR

88.00 €

(0% Discount)
Add to Cart
Product image Product image Product image
  1. Product image
  2. Product image
  3. Product image

LED recessed panel - Tunable White (2700-6500K) - 6W

Add a new review

LED recessed panel - round - white - IP20 - 6W - 2700K-6500K - 410lm-418lm - 24V/DC

1

88.00 € 88.00 € 88.0 EUR

(Total : 88.00 € ) 88.0 EUR

88.00 €

(0% Discount)
Days
:
Hours
:
Mins
:
Secs
  • Dimming potentiometer
  • Dimming programmable
  • Dimming phase cut-off
  • Dimming Phase cut-on cut
  • Dimming Mains voltage modulation
  • Dimming manufacturer-specific
  • Dimming LineSwitch
  • Dimming GPRS
  • Dimming DMX
  • Dimming Sine Wave Reduction
  • Dimmung DALI
  • Dimming 0-10 V
  • Dimming 1-10 V
  • Dimming RF
  • Dimming Touch and Dim
  • Constant luminous flux control
  • Compatible with Amazon Alexa
  • Replaceable operating device
  • Adjustable radiation angle
  • Adjustable color temperature
  • Dimming DALI-2
  • Compatible with Google Assistant
  • Dimming Zigbee
  • Compatible with Apple HomeKit
  • Dimming DSI
  • Suitable for cable system
  • Dimming depending on the operating device
  • Without dimming function
  • Dimming with push-button
  • IFTTT support available
  • With light sensor
  • Light output
  • Illuminant
  • Number of poles
  • Suitable for pendant suspension
  • Color rendering index CRI
  • Operating unit
  • With motion detector
  • Light distribution
  • Angle of radiation
  • Adjustability
  • Color of light
  • Max. System power (W)
  • Color temperature (K)
  • Integrated emergency power supply
  • With operating device
  • Luminaire with limited surface temperature "D symbol"
  • With illuminant
  • Outside diameter (mm)
  • Height/depth (mm)
  • Type of voltage
  • Nominal voltage (V)
  • Ambient temperature
  • Mounting diameter (mm)
  • Suitable for VDU workstations according to EN 12464-1
  • Covering the luminaire with thermal insulation material possible
  • Installation height/ depth (mm)
  • Connection type
  • Enclosure material
  • Cover material
  • Case color
  • Brushed surface
  • Suitable for ceiling mounting
  • Suitable for clamp mounting
  • Suitable for wall mounting
  • Suitable for track mounting
  • Suitable for platform/floor mounting
  • Suitable for traverse mounting
  • Suitable for surface mounting
  • Suitable for flush mounting
  • Degree of protection
  • Protection class
  • Impact resistance

This combination does not exist.

Brand: EVN
SKU:
900.000088

Category:

  • Accessories

    • Share:


    LED recessed panel for various applications, e.g. area-wide, but also effective lighting in hallways, living rooms, offices, and much more. The colour temperature of the panel can be freely selected in the range of 2700K-6500K by means of a separately available controller. When operating in 6500K, 418lm are achieved, when operating in 2700K, 410lm are achieved.  Due to the large-area light emission, a very homogeneous illumination of the room is always achieved.

    Specifications for LED recessed panel - Tunable White (2700-6500K) - 6W

    Function & Performance
    Dimming potentiometer nein
    Dimming programmable nein
    Dimming phase cut-off nein
    Dimming Phase cut-on cut nein
    Dimming Mains voltage modulation nein
    Dimming manufacturer-specific nein
    Dimming LineSwitch nein
    Dimming GPRS nein
    Dimming DMX nein
    Dimming Sine Wave Reduction nein
    Dimmung DALI nein
    Dimming 0-10 V nein
    Dimming 1-10 V nein
    Dimming RF nein
    Dimming Touch and Dim nein
    Constant luminous flux control nein
    Compatible with Amazon Alexa nein
    Replaceable operating device nein
    Adjustable radiation angle nein
    Adjustable color temperature stufenlos
    Dimming DALI-2 nein
    Compatible with Google Assistant nein
    Dimming Zigbee nein
    Compatible with Apple HomeKit nein
    Dimming DSI nein
    Suitable for cable system no
    Dimming depending on the operating device ja
    Without dimming function no
    Dimming with push-button nein
    IFTTT support available nein
    With light sensor nein
    Light output direkt
    Illuminant LED nicht austauschbar
    Number of poles 3
    Suitable for pendant suspension nein
    Color rendering index CRI 80-89
    Operating unit LED-Betriebsgerät spannungsgesteuert
    With motion detector nein
    Light distribution symmetrisch

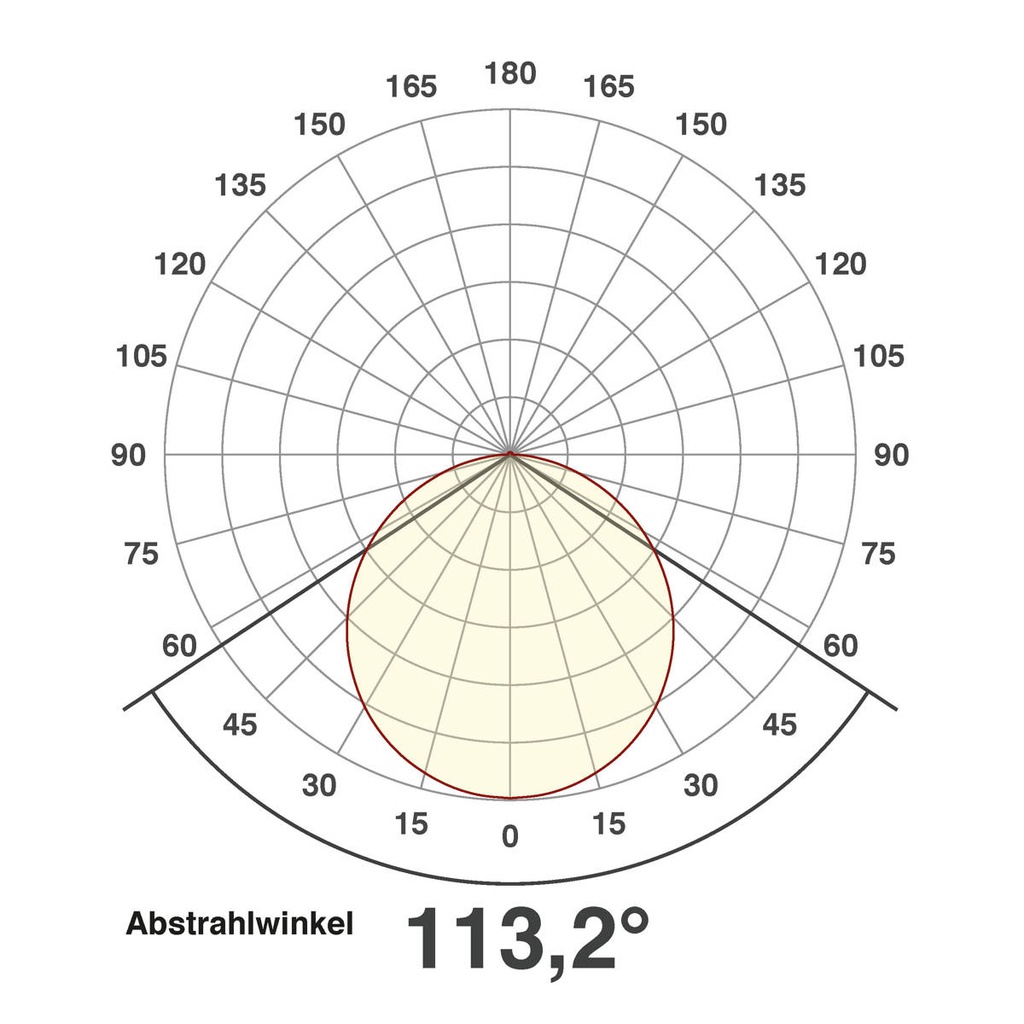

    Angle of radiation extrem breitstrahlend >80°
    Adjustability nein
    Color of light weiß
    Max. System power (W) 6,00
    Color temperature (K) 2.700,00 bis 6.500,00
    Integrated emergency power supply nein
    With operating device nein
    Luminaire with limited surface temperature "D symbol" nein
    With illuminant ja

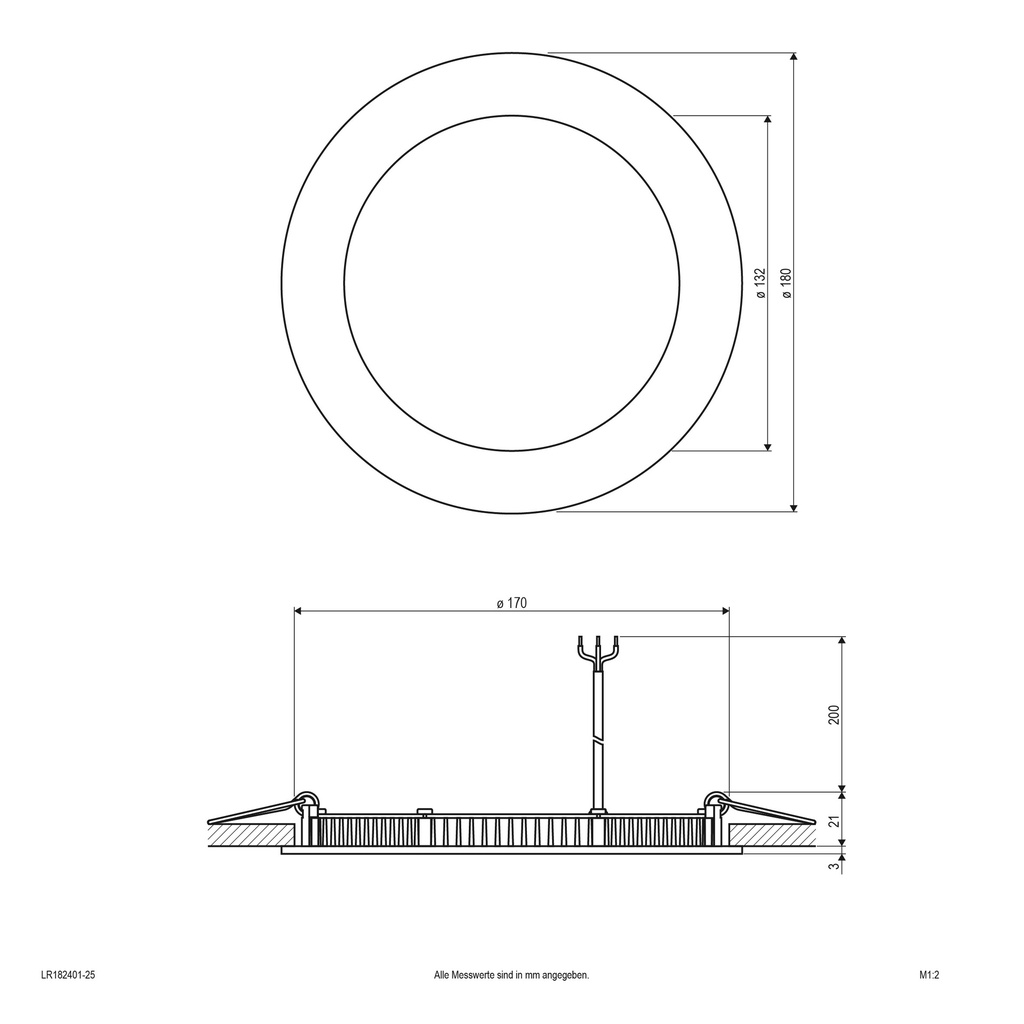

    Size and Weight
    Outside diameter (mm) 180,00
    Height/depth (mm) 24,00
    Power supply
    Type of voltage DC
    Nominal voltage (V) 24,00 bis 24,00
    Operation & Storage
    Ambient temperature -20°C bis +45°C
    Mounting diameter (mm) 170,00
    Suitable for VDU workstations according to EN 12464-1 nein
    Covering the luminaire with thermal insulation material possible nein
    Installation height/ depth (mm) 24,00
    Connection
    Connection type sonstige
    Casing
    Enclosure material Aluminium
    Cover material Kunststoff opal
    Case color weiß
    Brushed surface nein
    Mounting Type
    Suitable for ceiling mounting ja
    Suitable for clamp mounting nein
    Suitable for wall mounting ja
    Suitable for track mounting nein
    Suitable for platform/floor mounting nein
    Suitable for traverse mounting nein
    Suitable for surface mounting nein
    Suitable for flush mounting ja
    Technical data
    Degree of protection IP20
    Protection class III
    Uncategorized
    Impact resistance IK06
    LED recessed panel for various applications, e.g. area-wide, but also effective lighting in hallways, living rooms, offices, and much more. The colour temperature of the panel can be freely selected in the range of 2700K-6500K by means of a separately available controller. When operating in 6500K, 418lm are achieved, when operating in 2700K, 410lm are achieved.  Due to the large-area light emission, a very homogeneous illumination of the room is always achieved.
